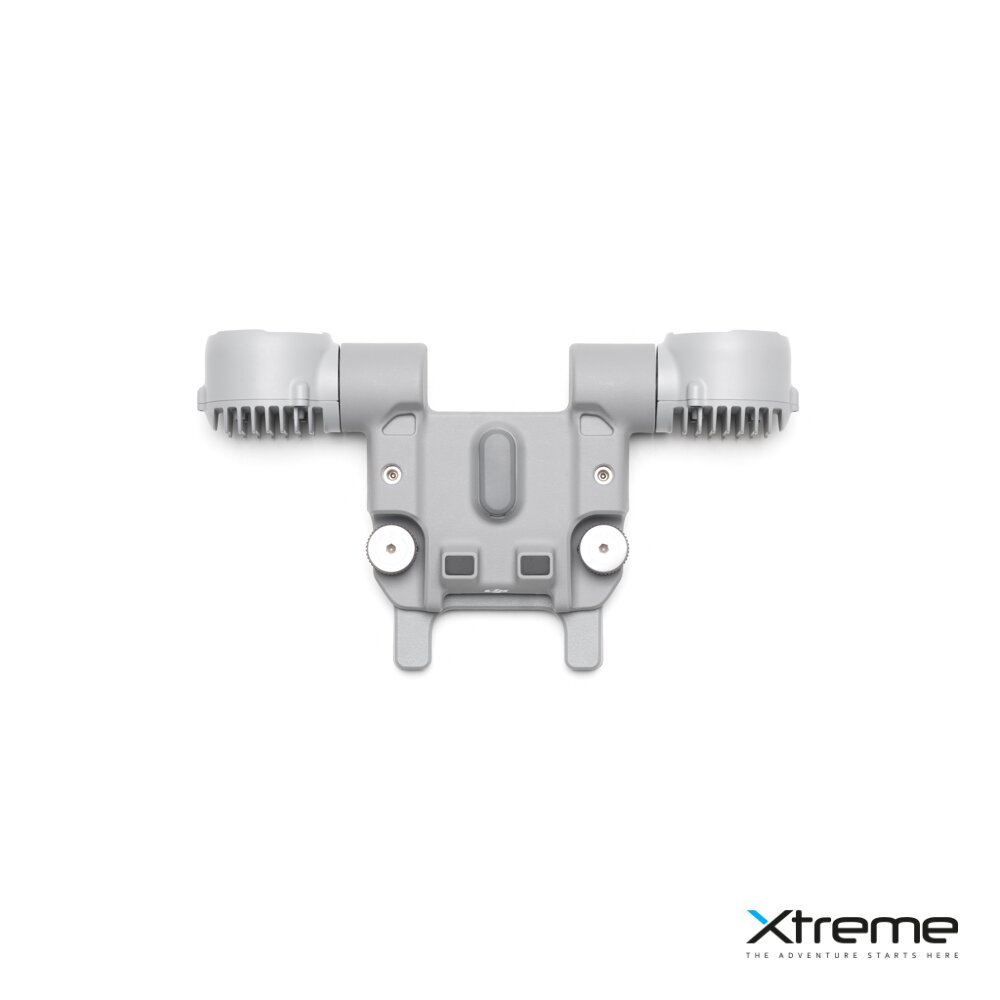

DJI AL1 Spotlight - Light
The DJI AL1 Spotlight offers two lighting modes: always-on and strobe. It can clearly illuminate objects up to 100 meters away [for reference only, actual distance may vary depending on outdoor conditions]. It also intelligently synchronizes with the gimbal, tracking the movement of the camera to ensure that the illuminated area is always in line with the shot. It also has a wide-angle lighting mode that can cover a larger area when using a wide-angle camera. The spotlight and speaker can be used separately or together, expanding the possibilities of deployment in various situations.
Main advantages
- Support two modes: continuous and strobe
- Smart gimbal linkage for synchronized lighting
- Wide-angle lighting option (wide fov mode)
Recommendations
- Tighten the screws firmly during installation. For long-term use on the drone, use the included Allen key and retighten the screws after assembly.
- After installation, activate the spotlight according to the instructions in the app. If a firmware update is available, perform it as soon as possible.
- After installing the reflector, the behavior of the propulsion and visual systems of DJI Matrice 4 series drones may change. Fly with extreme caution.
- Do not shine the spotlight directly into people's eyes.
- The reflector may become hot during prolonged use. Avoid contact to avoid burns.
Package contents
- Spotlight × 1
- Spare screws × 2
- Allen key × 1
Technical specifications
- Weight: 99g (including holder), approx. 91g (without holder)
- Dimensions (L×W×H):
- With holder: 95 × 164 × 30 mm
- Without holder: 79 × 164 × 28 mm
- Maximum power: 32 W
- Lighting:
- 4.3±0.2 lux @ 100 m
- 17±0.2 lux @ 50 m
- Effective illumination angle: 23° (10% relative intensity)
- Effective lighting area:
- 1,300 m² @ 100 m (10% relative intensity, Normal Mode)
- 2,200 m² @ 100 m (10% relative intensity, Wide fov Mode)
- Modes: continuous (always-on) and strobe
- Mechanical gimbal range (tilt): -135° to 45°
- Gimbal control range (tilt): -90° to 35°
- Max. control speed (tilt): 120°/s
- Gimbal alignment accuracy: ±0.1°
- Operating temperature: -20°C to 50°C (-4°F to 122°F)
- Mounting method: quick-release screws with hand tightening
Compatibility
