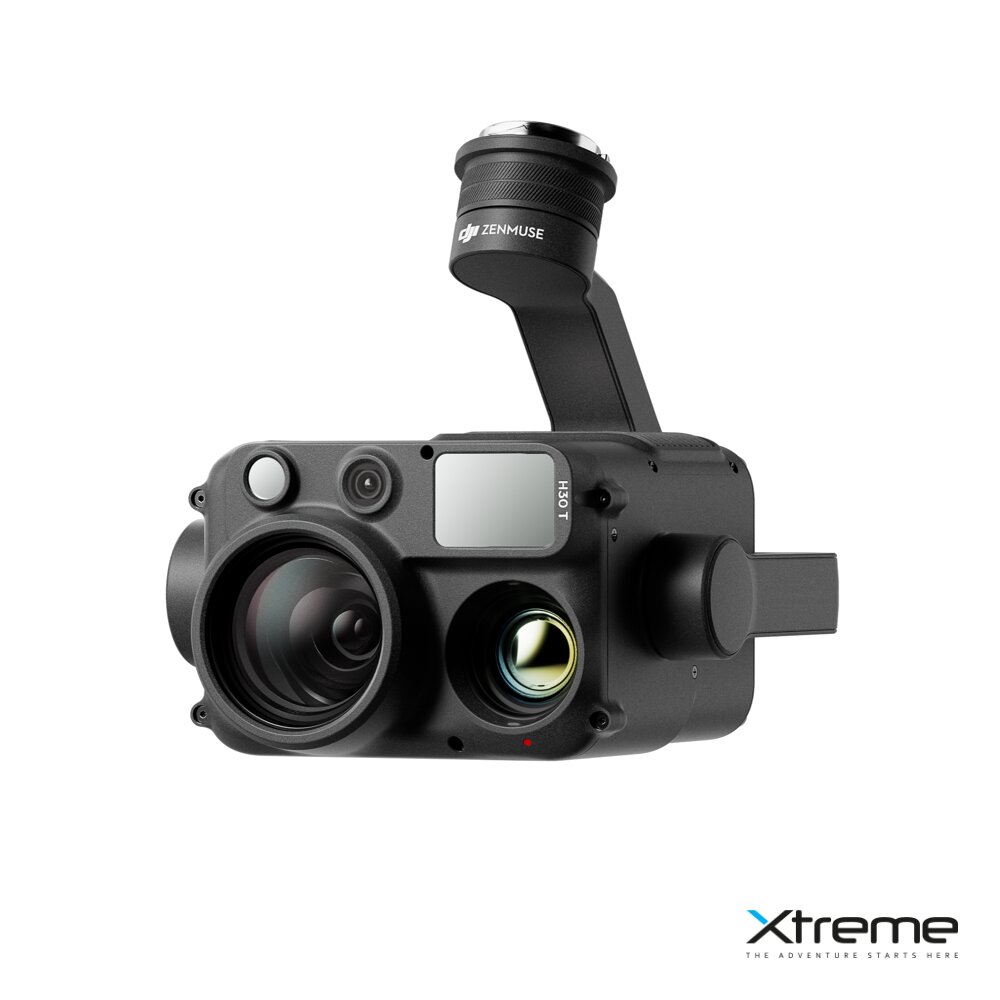

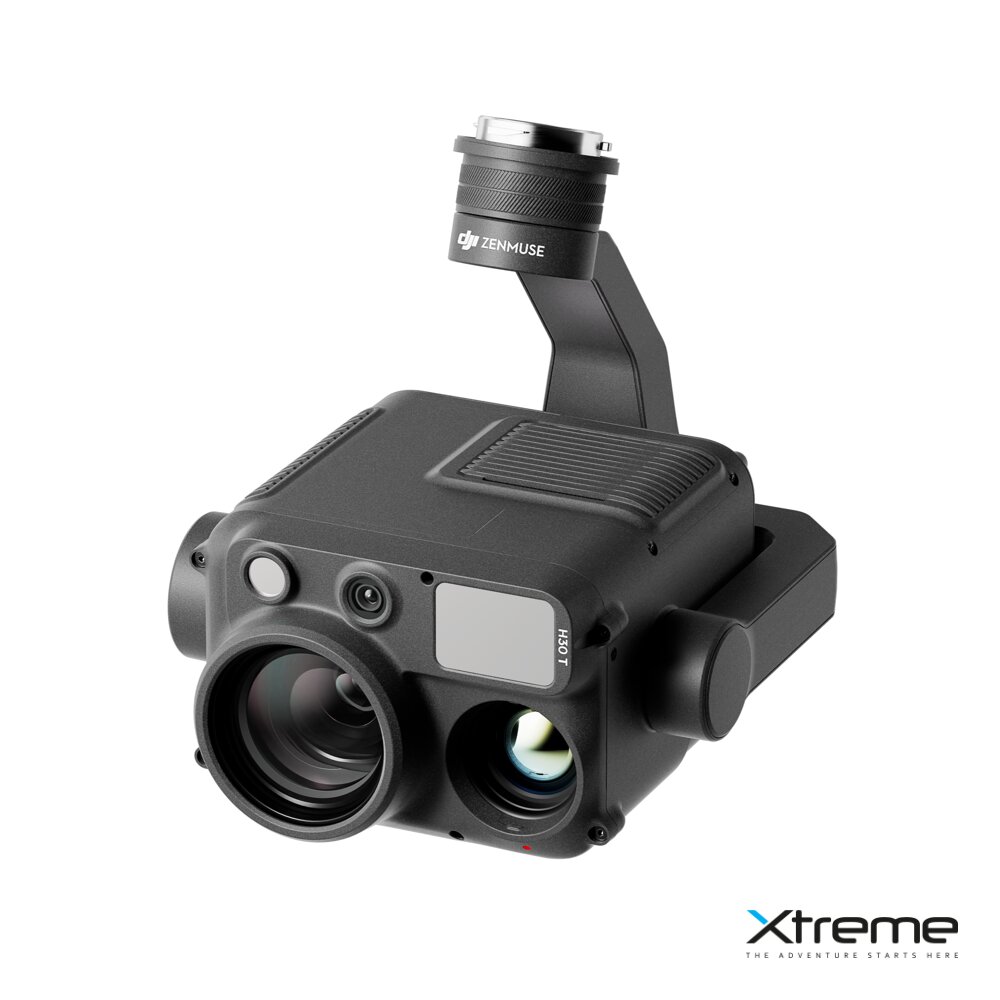

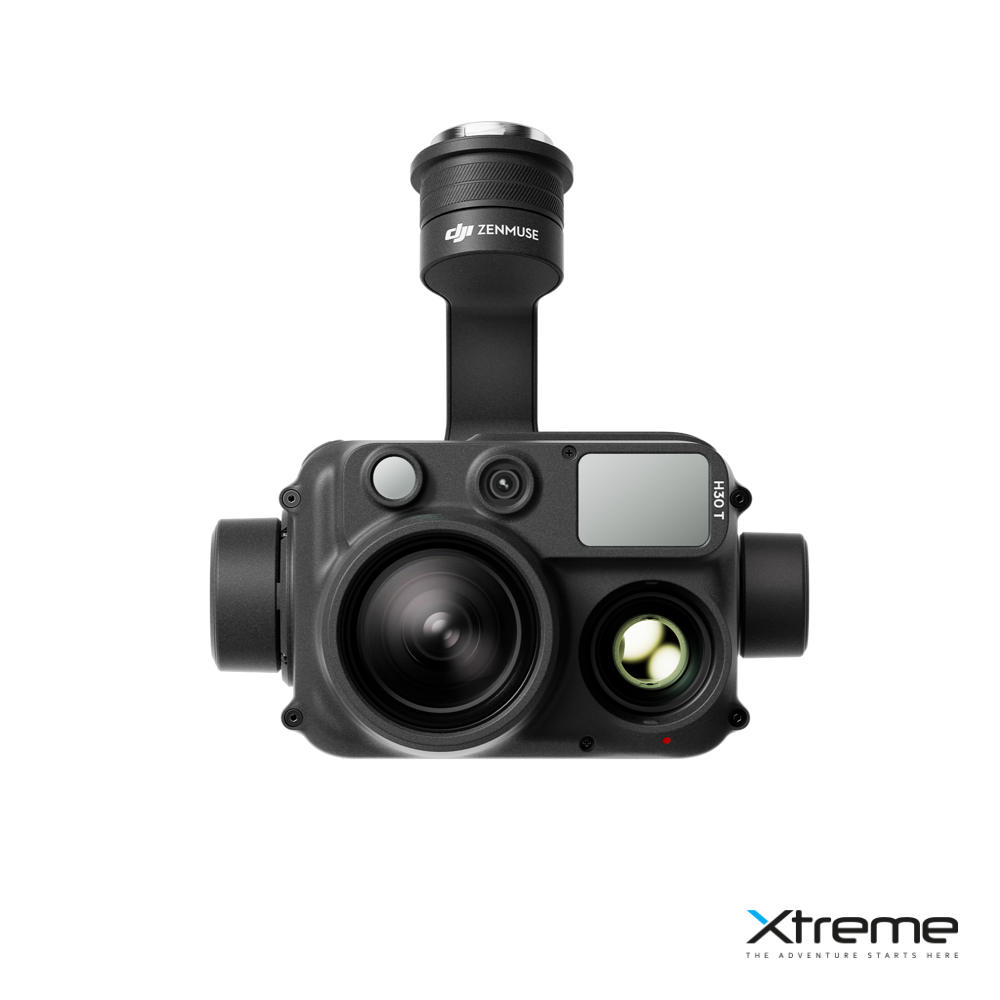

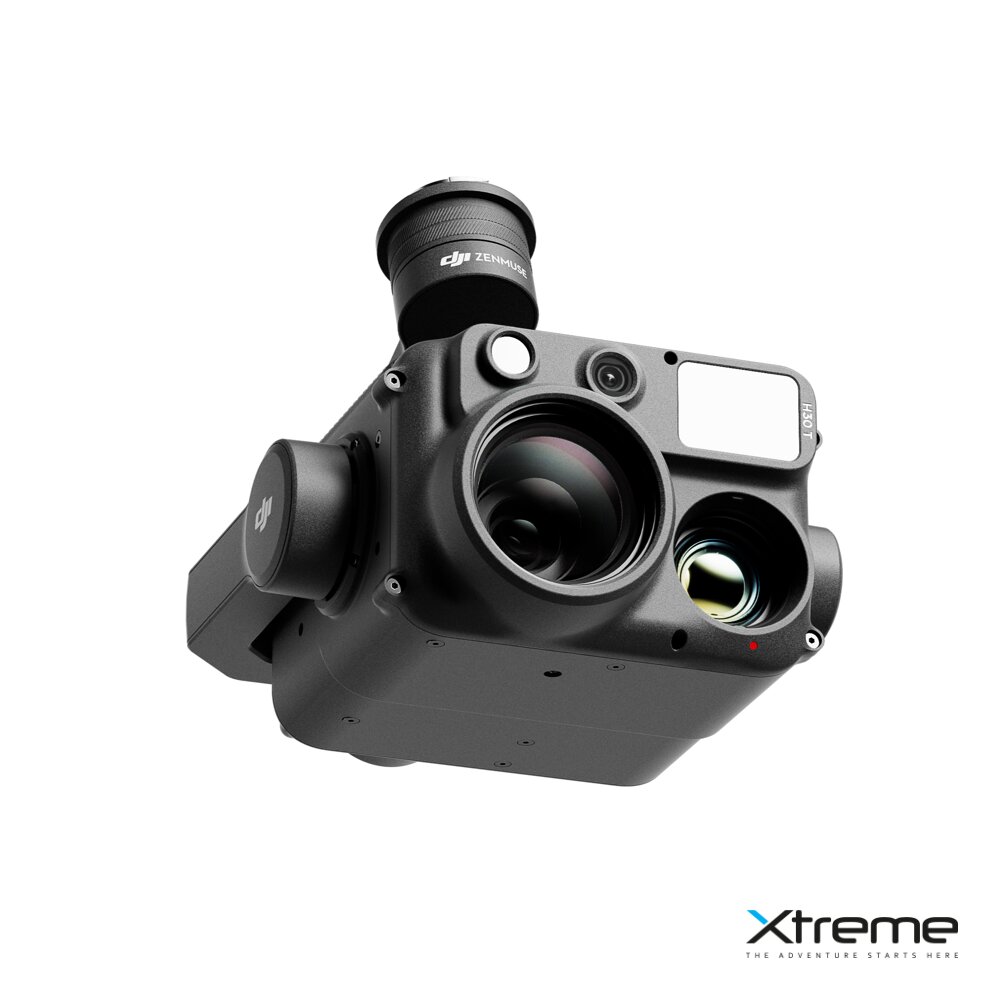

DJI Zenmuse H30T

The new DJI Zenmuse H30 Series camera is ready for any weather and equipped with multiple sensors. This technology integrates five main components: a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder and an auxiliary NIR light . It uses state-of-the-art intelligent algorithms that revolutionize perception and display standards, thereby overcoming the limitations of day and night vision. These features make it ideal for various types of operations such as public safety, energy inspections, water resource protection and forestry.

CLEARER VISION

Up to 34× Optical Zoom‌ and 400× Digital Zoom
The DJI Zenmuse H30 series has a high-resolution camera with a 40MP zoom, which allows up to 34x optical zoom and 400x digital zoom. Compared to the previous generation [2], it can not only observe objects at greater distances, but also captures more details.

More stable images from the Zoom camera
The DJI Zenmuse H30 series uses DJI's latest image stabilization algorithm, which effectively reduces shake when using telephoto lenses. Thanks to this, it provides stable and clear images, ideal for detailed inspections of electrical wiring.

Maximum laser sight 3000 m
The laser rangefinder boasts a measuring range that is up to 2.5 times larger than that of the previous generation [3]. It accurately captures information about the location of objects in the range from 3 m to 3000 m [4], including linear distance from the camera, altitude and GPS coordinates.

Improved night vision

Supports full-color night vision
Both the zoom and wide-angle cameras of the Zenmuse H30 series can switch to night scene mode in low-light conditions, improving live view and recording quality. This ensures efficient and accurate operation even at night, enabling continuous operation from day to night.

Supports black and white night vision and NIR illumination
In the night scene mode, the Zenmuse H30 series zoom camera supports infrared light and NIR illumination to enhance the infrared. [5] By switching the live broadcast to a grayscale image by removing the infrared filter, the contrast between light and dark areas is increased, making it easier to locate objects. When the NIR auxiliary light is activated, the zoom camera uses additional NIR illumination, which is especially useful for covert night surveillance and search and rescue operations.

Smarter multi-scenario operations

Smart Capture for enhanced imaging
In Smart Capture mode, the zoom and wide-angle cameras in the DJI Zenmuse H30 series automatically evaluate ambient light brightness and dynamic range. They use intelligent image algorithms that ensure photos have natural transitions between light and dark and rich details, even in high-dynamic, bright or low-light environments.

Electronic disclosure
In conditions such as smog or high humidity, the Zenmuse H30 series zoom camera uses the new Electronic Dehazing [11] function to improve image clarity. This feature offers low and high levels of defogging to suit different operating environments and requirements.

Excellent adaptability to the environment

IP54 Protection
Thanks to the IP54 dust and water resistance class [12], the DJI Zenmuse H30 series can operate safely and reliably even in demanding working conditions.

-20° to 50°C (-4° to 122°F) Operating Temp
The design of the DJI Zenmuse H30 series enables trouble-free operation in temperatures from -20° to 50° C (-4° to 122° F), ensuring that all-weather operation requirements are met.

More reliable synchronization and storage of information

Supports pre-recording
All cameras in the Zenmuse H30 series, including those with zoom, wide-angle lenses and infrared thermal cameras, have a pre-recording function. They have the ability to save footage from 10, 15 or 30 seconds before the official recording begins, ensuring a more comprehensive record and capturing key information that might otherwise quickly disappear.

Media and transmission encryption with one-click log wipe
The security code function provides the option to encrypt microSD cards, ensuring full protection of your files. AES-256 technology guarantees the security of data transmission between the remote control and the aircraft. In addition, it allows you to easily delete logs with one click, thus preventing information leakage.

Cloud synchronization of information for joint ground and air operations
Cloud information synchronization for joint ground and air operations allows operators to monitor live views from the Zenmuse H30 series via the DJI FlightHub 2 cloud platform, providing an overview of the current situation on the ground. This enables rapid remote control and guides the coordinated operations of air and ground personnel.

More powerful infrared performance

Infrared resolution 1280 × 1024
The infrared thermal camera boasts a resolution of 1280×1024, which is 4x more than the previous generation,[6] and offers up to 32x digital zoom. This allows you to get an overall view of the scene as well as zoom in on specific areas. At higher zoom levels, it automatically activates the UHR (Ultra-High Resolution) infrared image function[7], ensuring that infrared images remain sharp.

High resolution mode for precise observation
The DJI Zenmuse H30T offers three infrared gain modes: High Gain mode for accurate temperature measurement, Low Gain mode for a wider temperature range, and the new High-Res mode,[8] which is especially useful for tracking objects, people or animals with small temperature differences. This mode is extremely practical for security, emergency and search and rescue operations.

Visual and IR cameras Simultaneous zoom
The zoom camera and the DJI Zenmuse H30T infrared thermal camera support the Link Zoom function, which allows operators to simultaneously zoom in on visible light and thermal images while maintaining the same angle of view. This juxtaposed image detail helps locate the object faster, increases efficiency and saves effort at the same time.

Temperature measurement range from -20° to 1600°C (-4° to 2912°F)

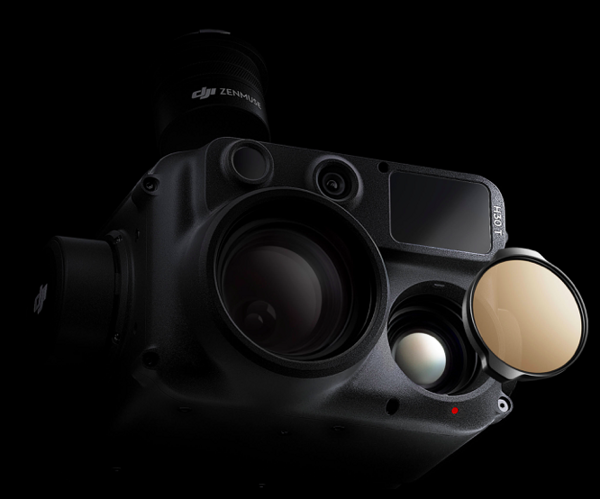

By installing an infrared density filter[9], the infrared thermal imager can measure temperatures up to 1600°C (2912°F), which is triple that of the previous generation.[10] This is particularly useful in firefighting and high-temperature operations, as it allows more effective estimation of temperature changes and faster location of hot spots, increasing rescue efficiency.

Usage scenarios

DJI Enterprise flight platforms make the Zenmuse H30 series an ideal choice for a variety of fields, including public safety, energy, oil and gas, water conservation, and forestry.

Specifications:

Dimensions: 170×145×165 mm (L×W×H)
Weight: 920±5 g
Power: H30: 26 W
H30T: 28W
Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus)
Matrix 350 RTK
Mapping software: DJI Terra, DJI FlightHub 2
Infrared analysis software: DJI Thermal Analysis Tool 3

* Before using the Zenmuse H30 series payload for the first time, activate it using the DJI Pilot 2 app.
** All data on this page was measured using a production payload model of the Zenmuse H30 series in a controlled environment. Actual experience may vary depending on environment, usage and firmware version.
*** All videos and images on this page were shot using a Zenmuse H30 series by professionals in strict compliance with local laws and regulations and underwent various degrees of post-production editing. All videos and images are for reference only. Actual results may vary. Always follow local laws and regulations and ensure that the aircraft has obtained the appropriate certificates and airspace clearances before flying.
**** All images, videos and screen display content related to the product itself on this page are for reference only. Actual product effects (including but not limited to appearance, color and size) and screen content (including but not limited to background, user interface and illustrations) may vary.
1. An infrared density filter must be purchased additionally in order to be able to measure temperatures up to 1600 °C.
2. Comparison of max. zoom ratios of Zenmuse H30 series and H20 series. Data measured in DJI lab.
3. Comparison of the longest measuring distance of Zenmuse H30 series and H20 series laser rangefinders. Data measured in DJI lab.
4. Data measured in the DJI laboratory. The measurement range may vary depending on the material and shape of the test object, as well as the influence of the gimbal angle, ambient light and weather conditions such as rain or fog. If the laser pulse hits multiple targets, its energy is dispersed, which can reduce the measurable distance.
5. IR Light and NIR Illumination are only supported when using a zoom camera. NIR lighting is activated only after take-off. If the NIR auxiliary light is activated first, the IR light will also be activated at the same time.
6. Comparison of the resolution of the infrared thermal camera of the Zenmuse H30 series and the H20 series. Data measured in DJI lab.
7. The UHR Infrared Image function should be activated beforehand. When the night scene mode is activated, the function is disabled.
8. Temperature measurement is not supported when High-Res mode is used on the infrared thermal camera.
9. Sold separately.
10. Comparison of the highest measurable temperatures of the Zenmuse H30 and H20 infrared thermal cameras. Data measured in DJI lab.
11. Night Scene mode and ‌Electronic Dehazing cannot be used at the same time.
12. In controlled laboratory conditions, it can achieve IP54 degree of protection according to IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
