Product code: 9262
Brand:
When DJI Power is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can connect solar panels via the XT60 interface on the DJI Power Series Eco-Charging Adapter Module. It is recommended to use DJI Power series generators in conjunction with DJI-certified Zignes solar panels. If you use other brands of solar panels, it is necessary to use the MPPT module and convert the solar panel port to XT60 interface to enable solar charging for DJI Power series.
* Required accessories are sold separately.
1. One MPPT module can be connected to up to three solar panels.
2. If you want to use solar panels that are not officially recommended by DJI, and to avoid damage to the MPPT module and the power station, please ensure that the open-circuit voltage of the solar panel is lower than 30V. The output power of each solar panel should not exceed 200W, while the total the output power of the solar panels connected to the whole MPPT module is limited to 400 W.
3. When using solar panels with MPPT module, install the included metal bracket for heat dissipation.
4. When used with DJI Power 500, the maximum output power of the solar panels connected to the entire adapter module should not exceed 300W.

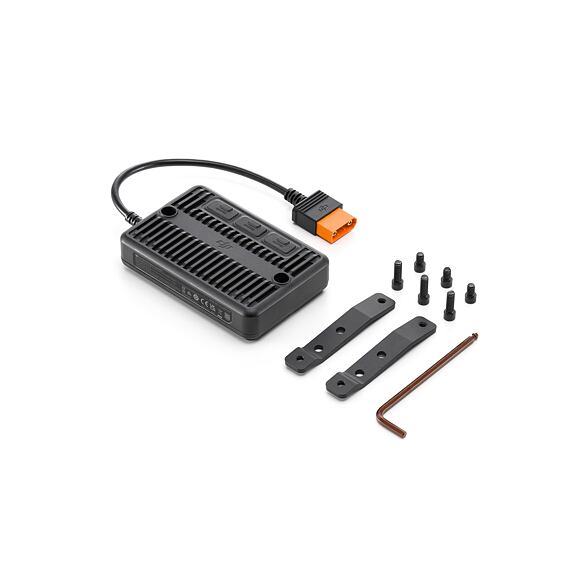

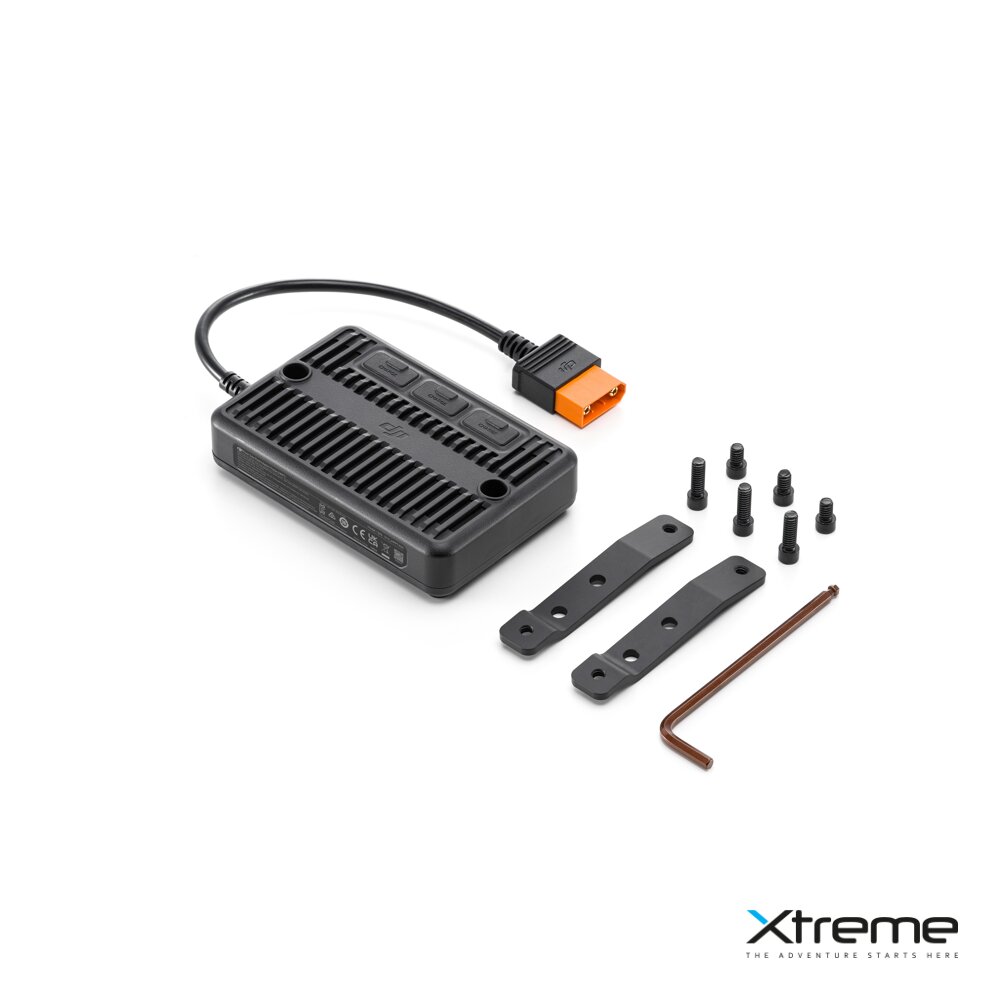

1x DJI Power Solar Panel Adapter Module (MPPT)
2x Metal Heat Dissipation Bracket
1x Ball-End Hey Key
3x 10mm screws
3x 20mm screws
Total Output:
Single Channel:
Max 200 W
Triple Channels:
Max 400 W (with DJI Power 1000)
Max 300 W (with DJI Power 500)
Input Voltage: 12-30 V, DC
Max Input Current:
Single Channel: 10 A
Triple Channels: 16 A
Operating Temperature: -10° to 45° C (41° to 113° F)
DJI Power 1000
DJI Power 500
